Call FIMS module from RTMB

FIMS-RTMB Example

This demo uses a FIMS module to set up an RTMB model.

library(FIMSRTMB)
FIMSRTMB:::setup_RTMB()

## Global pointer successfully set: 0x7f8d7550aee0

library(ggplot2)

# clear memory
clear()

Set up a logistic module using FIMS

logistic <- methods::new(LogisticSelectivity)

Simulate data using the FIMS module

# set the two parameters from the logistic module:
#   inflection_point and slope
logistic$inflection_point[1]$value <- 10.0
logistic$slope[1]$value <- 0.2
X <- 1:30
Y <- mu <- X * 0
sdy <- 0.05 #observation error around logistic

set.seed(123)
for(i in X){
    # evaluate returns the logistic function given the parameters and x
    mu[i] <- logistic$evaluate(X[i])
    # simulate random noise around the mean
    Y[i] <- rnorm(1, mu[i], sdy)
}

df <- data.frame(x = X, y = Y)

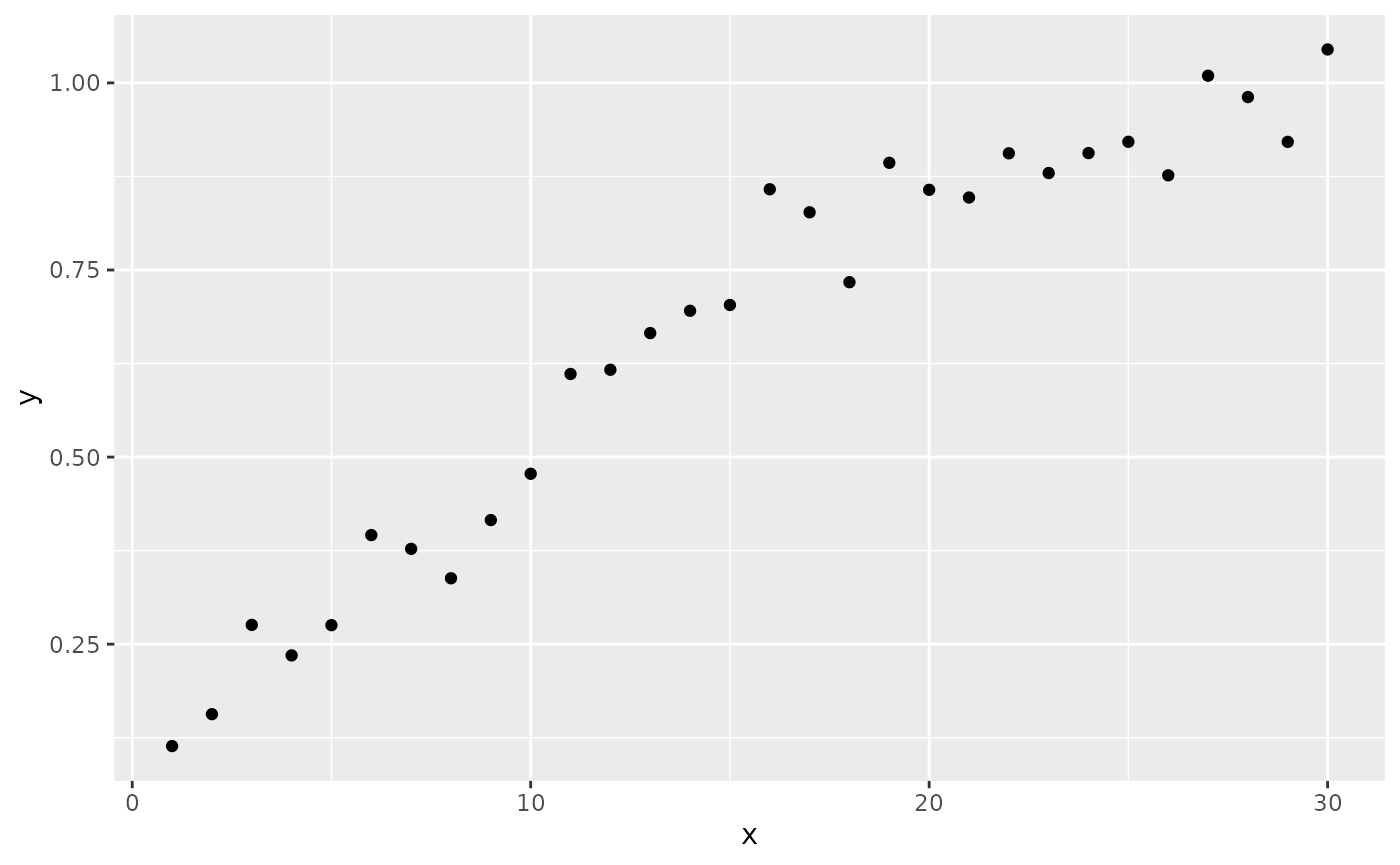

ggplot(df, aes(x = x, y = y)) + geom_point()

Set up RTMB model

dat <- list(y = Y, x = X)
par <- list(inflection_point = 10, slope = 0.2,
            ln_sdy = 0)

mod <- function(par){
    getAll(par, dat)
    sdy <- exp(par$ln_sdy)
    mean_selectivity <- logistic$evaluate_RTMB(
        x = advector(x),
        inflection_point = advector(par$inflection_point),
        slope = advector(par$slope)
    )
    nll <- 0
    for(i in seq_along(x)){
        nll <- nll - RTMB::dnorm(y[i], mean_selectivity[i], sdy, TRUE)
    }
    return(nll)
}

Generate TMB object and optimize

obj <- RTMB::MakeADFun(mod, par)
opt <- nlminb(obj$par, obj$fn, obj$gr)

## outer mgc:  29.93006
## outer mgc:  29.50302
## outer mgc:  512.6907
## outer mgc:  218.1737
## outer mgc:  72.97432
## outer mgc:  82.41938
## outer mgc:  37.30409
## outer mgc:  0.9372692
## outer mgc:  11.07212
## outer mgc:  5.289398
## outer mgc:  3.868949
## outer mgc:  0.6818801
## outer mgc:  3.179516
## outer mgc:  1.391376
## outer mgc:  3.705423
## outer mgc:  0.341448
## outer mgc:  0.008789876
## outer mgc:  0.0006018996
## outer mgc:  1.274528e-05

opt$par

## inflection_point            slope           ln_sdy
##        9.8550441        0.1874293       -3.0572592
