# Outline

- Hierarchical Modeling in Stock Assessments

- C++ architecture

- User Interface

- Future Development Plans

---

# Hierarchical Modeling in Stock Assessments

<br>
<br>
.center[
.large[

`$Index \sim LogNormal(\hat{\mathbf{I}}, \sigma_{I})$`

<br>

`$\hat{\mathbf{I}} = f(Growth, Maturity, Mortality, \mathbf{Recruitment}, Selectivity)$`

<br>

`$\log(\mathbf{Recruitment}) \sim Normal(\log(\hat{R}), \sigma_{R})$`
]]

---

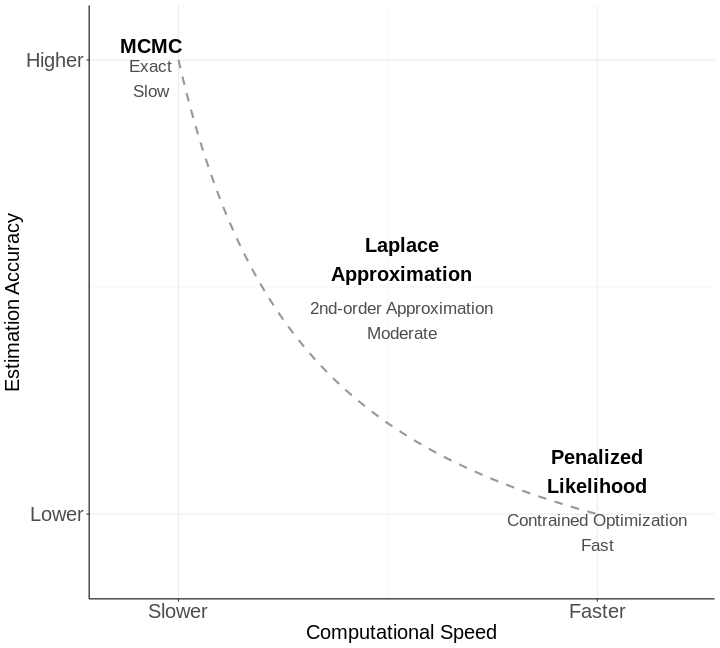

# Fitting Hierarchical Models: Speed vs. Accuracy

.pull-left[
**Penalized likelihood**
- Fixed effects estimation (fastest)
- Uses a Constrained optimization approach

**Laplace approximation**
- Random effects estimation (moderate)
- Uses 2nd-order Taylor series approximation

**MCMC**
  - Full posterior sampling (slowest)
  - Asymptotically exact posterior
]

.pull-right[
![](slides_20261007_Hierarchical_FIMS_files/figure-html/unnamed-chunk-1-1.png)
]

---
# Guiding Principles in Design
<br><br>

- Generic and Flexible

- Extensible

- Separate the biological math from the statistics

- Dependency on TMB and access to the Laplace Approximation
---
.large[**Decoupling Biological Processes from Statistical Likelihood**]
<div id="htmlwidget-0c948ce9f3218bc14cf4" style="width:100%;height:85%;" class="grViz html-widget"></div>
<script type="application/json" data-for="htmlwidget-0c948ce9f3218bc14cf4">{"x":{"diagram":"\ndigraph fims {\n  # Global settings\n  graph [rankdir=LR, bgcolor=\"transparent\", compound=true, nodesep=0.5, ranksep=0.6]\n  node [shape=box, style=\"filled, rounded\", color=\"#5b8db8\", fillcolor=\"#f0f7ff\", fontname=\"Arial\", fontcolor=\"#333333\", fontsize=28, width=2.5, height=0.8]\n  edge [color=\"#666666\", arrowhead=vee, penwidth=1.2, fontsize = 24]\n\n  # User Layer\n  subgraph cluster_user {\n    label=\"User Layer\"; fontname=\"Arial-Bold\"; fontcolor=\"#5b8db8\"; style=\"dashed\"; color=\"#5b8db8\"; fontsize = 28;\n    node [fillcolor=\"#e1f5fe\", color=\"#01579b\"]\n    A [label=\"R User Interface\"]\n  }\n\n  # Central Dispatch\n  subgraph cluster_logic {\n    label=\"Central Dispatch\"; fontname=\"Arial-Bold\"; fontcolor=\"#c88a2a\"; style=\"dashed\"; color=\"#c88a2a\"; fontsize = 28;\n    node [fillcolor=\"#fff3e0\", color=\"#e65100\"]\n    B [label=\"Rcpp Interface\"]\n    C [label=\"FIMS.cpp\"]\n    D [label=\"Information\"]\n  }\n\n  # Calculation Engine\n  subgraph cluster_engine {\n    label=\"Calculation Engine\"; fontname=\"Arial-Bold\"; fontcolor=\"#4f9a63\"; style=\"dashed\"; color=\"#4f9a63\"; fontsize = 28;\n    node [fillcolor=\"#e8f5e9\", color=\"#2e7d32\"]\n   \n    E [label=\"Population Dynamics\"]\n    H [label=\"Catch-At-Age\"]\n    F [label=\"Distributions\"]\n    J [label=\"Data\"]\n  }\n\n  # Results\n  subgraph cluster_results {\n    label=\"Results\"; fontname=\"Arial-Bold\"; fontcolor=\"#b85a7a\"; style=\"dashed\"; color=\"#b85a7a\"; fontsize = 28;\n    node [fillcolor=\"#fce4ec\", color=\"#880e4f\", fontsize = 24]\n    G [label=\"model.hpp\"]\n    I [label=\"Negative Log-Likelihood\"]\n  }\n\n  # Layout constraints (forcing order)\n  {rank=same; B C}\n  {rank=same; E H F J}\n\n  # Edges\n  A -> B\n  A -> C\n  B -> D\n  D -> E\n  D -> H\n\n  D -> F\n  D -> J \n  \n  J -> F [constraint=false, style=solid]\n  E -> H\n  \n  # Grouping the outputs to model.hpp\n  {H F} -> G\n  C -> G\n  G -> I\n  \n  # Feedback loops (using \"constraint=false\" so they don\"t mess up the LR flow)\n  I -> C [constraint=false, style=dotted, label=\"value/gradient\", fontsize = 28]\n}\n","config":{"engine":"dot","options":null}},"evals":[],"jsHooks":[]}</script>
---
# Globally Available Variable Map
variable\_map(Parameter ID, Pointer to the Parameter in Memory)
.pull-left[
  <br>
<div id="htmlwidget-26818cfd297ade1d17f2" style="width:100%;height:50%;" class="grViz html-widget"></div>
<script type="application/json" data-for="htmlwidget-26818cfd297ade1d17f2">{"x":{"diagram":"\ndigraph fims {\n  # Global settings\n\n  graph [rankdir=LR, bgcolor=\"transparent\", compound=true, nodesep=0.5, ranksep=0.6]\n  node [shape=box, style=\"filled, rounded\", color=\"#5b8db8\", fillcolor=\"#f0f7ff\", fontname=\"Arial\", fontcolor=\"#333333\", fontsize=28 width=2.5, height=0.8]\n  edge [color=\"#666666\", arrowhead=vee, penwidth=1.2, fontsize = 28]\n\n\n  # Central Dispatch\n  subgraph cluster_logic {\n    label=\"Central Dispatch\"; fontname=\"Arial-Bold\"; fontcolor=\"#ffffff\"; style=\"dashed\"; color=\"#ffffff\"; fontsize = 28;\n    node [fillcolor=\"#fff3e0\", color=\"#e65100\"]\n    A [label=\"Rcpp Interface\"]\n    B [label=\"Variable Map\"]\n  }\n\n  # Calculation Engine\n  subgraph cluster_engine {\n    label=\"Calculation Engine\"; fontname=\"Arial-Bold\"; fontcolor=\"#4f9a63\"; style=\"dashed\"; color=\"#4f9a63\"; fontsize = 28;\n    node [fillcolor=\"#e8f5e9\", color=\"#2e7d32\"]\n   \n    D [label=\"Population Dynamics\"]\n    E [label=\"Catch-At-Age\"]\n    F [label=\"Distributions\"]\n    G [label=\"Data\"]\n  }\n\n\n  # Layout constraints (forcing order)\n  {rank=same; D E F G}\n\n  # Edges\n  {A,D} -> B\n\n  D -> E\n  E -> F\n  G -> F [constraint=false, style=solid]\n\n  B -> F\n\n  \n}\n","config":{"engine":"dot","options":null}},"evals":[],"jsHooks":[]}</script>
]
.pull-right[
**Rcpp Interface** <br>
_BevertonHolt Interface_<br>

```cpp
info //link to information.hpp
r // link to recruitment backend

// interface parameter that gets
// user value from R
Variable log_rzero
// ID assigned by interface
int ID = log_rzero.id()

// Store back-end log_rzero in the
// variable map using the interface ID
variable_map[ID] = &(r)->log_rzero
```
]

---
# Globally Available Variable Map

variable\_map(Parameter ID, Pointer to the Parameter in Memory)

.pull-left[
**Rcpp Interface** <br>Populates the variable map with pointers to all model parameters, including random effects.<br><br>
**Information** <br>Stores the variable map, which is accessible across all C++ files. <br><br>
**Distributions** <br>Accesses the variable map to compute likelihood contributions.
]

---
# Globally Available Variable Map

variable\_map(Parameter ID, Pointer to the Parameter in Memory)

.pull-right[
**Prior Likelihood**<br>
observed_value -> parameter
<br><br>
**Random Effects Likelihood**<br>
observed_value -> random effect parameter<br>
expected_value -> derived quantity (or vector of 0s)
<br><br>
**Data Likelihood**<br>
observed_value -> data vector<br>
expected_value -> derived quantity
]
---
# Add Prior Likelihood to the Model

``` r
library(FIMS)
# Prepare the package data for being used in a FIMS model
data("data_big")
data_4_model <- FIMSFrame(data_big)

# Set up the default configurations and parameters for the model
default_parameters <- setup_default_parameters(data = data_4_model)

# initialize model using the power user interface or setup_default_* functions

slope_mean <- 1.5; slope_sd <- 3
slope_prior <- methods::new(DnormDistribution)
slope_prior$expected_values$resize(2)
slope_prior$expected_values[1]$value <- slope_mean
slope_prior$expected_values[2]$value <- slope_mean
slope_prior$log_sd[1]$value <- log(slope_sd)
slope_prior$set_distribution_links("prior",c(fleet1$slope$get_id(),
                                             fleet2$slope$get_id()))
```
---
# One Objective, Two Estimation Modes

``` r
# Build objective from FIMS/TMB ingredients
FIMS::CreateTMBModel()
parameters <- list(p = get_fixed(), re = get_random())
obj <- TMB::MakeADFun(
  data = list(),
  parameters,
  random = "re",
  DLL = "FIMS",
  silent = TRUE
)

# Frequentist path
fit <- stats::nlminb(start = obj$par, objective = obj$fn, gradient = obj$gr)

# Bayesian path (same objective)
posterior <- SparseNUTS::sample_snuts(
  obj = obj,
  iter_warmup = 1000,
  iter_sampling = 1000,
  chains = 4
)
```

---
# Connecting Random Effects to TMB

``` r
recruitment$log_devs[i]$set_estimation_type("random_effects")
```

In the Rcpp Interface, if a parameter's estimation type is set to "random_effects":
- The parameter gets added to the global `random_effects_parameters` vector.
- An R function returns the list of random effects parameters for a model.
- The random effects list is passed into FIMS.cpp through MakeADFun and is linked
   to the global `random_effects_parameters` vector.

``` r
parameters <- list(
    p = get_fixed(),
    re = get_random()
  )
  obj <- TMB::MakeADFun(
    data = list(), parameters, DLL = "FIMS",
    silent = TRUE, map = map, random = "re"
  )
```

---

# Default FIMS Model

``` r
library(FIMS)
# Prepare the package data for being used in a FIMS model
data("data_big")
data_4_model <- FIMSFrame(data_big)

# Set up the default configurations and parameters for the model
default_parameters <- setup_default_parameters(
  data = data_4_model
)

# run the model
fit <- default_parameters |>
  initialize_fims(data = data_4_model) |>
  fit_fims(optimize = TRUE)
```

---
# Recruitment Deviations are random effects by default

``` r
default_parameters |>
  dplyr::filter(
    label == "log_devs"
  )
```

```
## # A tibble: 29 × 11
##    module_name fleet module_type  label      age length timing value estimation_type distribution_type distribution
##    <chr>       <chr> <chr>        <chr>    <dbl>  <dbl>  <int> <dbl> <chr>           <chr>             <chr>
##  1 Recruitment <NA>  BevertonHolt log_devs    NA     NA      2     0 random_effects  process           Dnorm
##  2 Recruitment <NA>  BevertonHolt log_devs    NA     NA      3     0 random_effects  process           Dnorm
##  3 Recruitment <NA>  BevertonHolt log_devs    NA     NA      4     0 random_effects  process           Dnorm
##  4 Recruitment <NA>  BevertonHolt log_devs    NA     NA      5     0 random_effects  process           Dnorm
##  5 Recruitment <NA>  BevertonHolt log_devs    NA     NA      6     0 random_effects  process           Dnorm
##  6 Recruitment <NA>  BevertonHolt log_devs    NA     NA      7     0 random_effects  process           Dnorm
##  7 Recruitment <NA>  BevertonHolt log_devs    NA     NA      8     0 random_effects  process           Dnorm
##  8 Recruitment <NA>  BevertonHolt log_devs    NA     NA      9     0 random_effects  process           Dnorm
##  9 Recruitment <NA>  BevertonHolt log_devs    NA     NA     10     0 random_effects  process           Dnorm
## 10 Recruitment <NA>  BevertonHolt log_devs    NA     NA     11     0 random_effects  process           Dnorm
## # ℹ 19 more rows
```

---
# Change to fixed effect
Estimate with constrained optimization (penalized likelihood)

``` r
# set estimation_type of log_devs to fixed_effects
default_parameters <- default_parameters |>
  dplyr::mutate(
    estimation_type = ifelse(label == "log_devs",
      "fixed_effects", estimation_type)
  )
# fix Recruitment Distribution log_sd to "constant"
default_parameters <- default_parameters |>
  dplyr::mutate(
    estimation_type = ifelse(label == "log_sd" &
        module_name == "Recruitment",
      "constant", estimation_type)
  )
```
---
# Sparse parameterization of recruitment

$$
`\begin{align}
log\_r &\sim Normal(\widehat{log\_r}, \sigma_{r})\\
\widehat{log\_r} &= log(BevertonHolt(SSB, parameters))
\end{align}`
$$

``` r
  default_parameters <- default_parameters |>
  dplyr::filter(!(label == "log_devs" & module_name == "Recruitment")) |>
  dplyr::rows_append(
      tibble::tibble(
      module_name = "Recruitment",
      module_type = "BevertonHolt",
      label = "log_r",
      timing = 1:30,
      value = rep(0,30),
      estimation_status = "random_effects",
      distribution_type = "process",
      distribution = "Dnorm"
    )
  )
```
---
# Upcoming User Interface Enhancements

New helper functions to set random effects for any process (GitHub Issue [#1235](https://github.com/NOAA-FIMS/FIMS/issues/1235))
<br>

``` r
add_process(
  module_name = “selectivity”,
  fleet_name = “fleet1”,
  specification_type = “semi_parametric”,
  strucutre = “AR1”,
  base_function = “logistic”,
  logit_rho = 0)

add_priors(
    fleet = c(fleet1, fleet2),
    module = selectivity,
    slope ~ normal(1.5, 10),
    inflection_point ~ normal(2, 10)
)
```
---
# Future FIMS Hierarchical Development Goals
<br>
.large[
- Flexible priors via **automatic Jacobian** transformations (Draft PR [#1495](https://github.com/NOAA-FIMS/FIMS/pull/1495))
<br><br>
- Add a generic **ARn** distribution (Issue [#582](https://github.com/NOAA-FIMS/FIMS/issues/582))
<br><br>
- Add multivariate functionality
  - **GMRF** distribtion (Issue [#582](https://github.com/NOAA-FIMS/FIMS/issues/582))
  - Ability to set **multivariate pointers**
  <br><br>
- Fully develop **non-parametric** and **semi-parametric** functionality for all time-varying parameters
  - Age-based selectivity Closed Issue [#1206](https://github.com/NOAA-FIMS/FIMS/issues/1206)
<br><br>
- Add OSA residuals (Issue [#546](https://github.com/NOAA-FIMS/FIMS/issues/546))
]
---
# Summary
<br>
.large[
- FIMS Random Effects and Priors are designed to be **generic**, **flexible**, and **extensible**
  <br><br>
- FIMS keep the biological math **separate** from the statistical likelihood
  <br><br>
- The global **variable map** allows any **parameter** or **derived quantity** to be linked to random effect or prior distributions
  <br><br>
- One TMB object for both **MLE optimization** and **Bayesian MCMC**
  <br><br>
- The current **default model** fits recruitment deviations as **random effects** with a Normal iid distribution
]

---
